When it comes to keeping your heating system running reliably through the winter, a standard annual check often isn’t enough to prevent long-term carbon and sludge build-up. For this job in Fulham, we carried out a comprehensive, full strip-down service on a Vaillant EcoTEC boiler.
If you’re wondering what an actual, thorough boiler overhaul involves—rather than just a quick tick-box exercise—this is how we do it.
Step 1: Initial Inspection and Cover Removal
We begin by isolating the appliance and removing the outer casing to conduct a thorough initial visual inspection of the internal components, wiring harnesses, and pipework connections, checking for any early signs of wear or minor leaks.
Step 2: Isolating and Accessing the Combustion Chamber

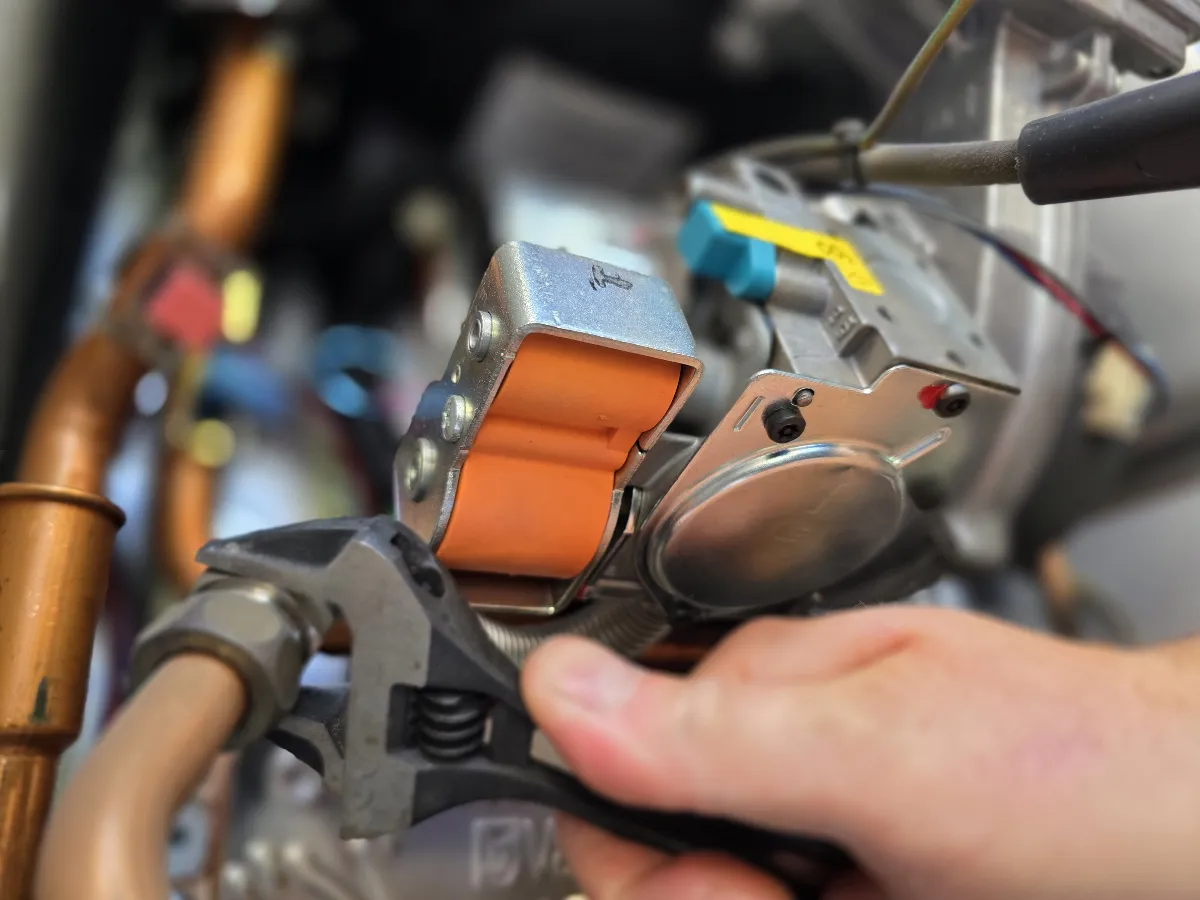

Safety comes first. The gas supply is securely isolated, and electrical power to the boiler is turned off. We then disconnect the gas valve, fan assembly, and ignition leads to get clear, unobstructed access to the main burner door and heat exchanger.
Step 3: Burner Removal and Component Replacement

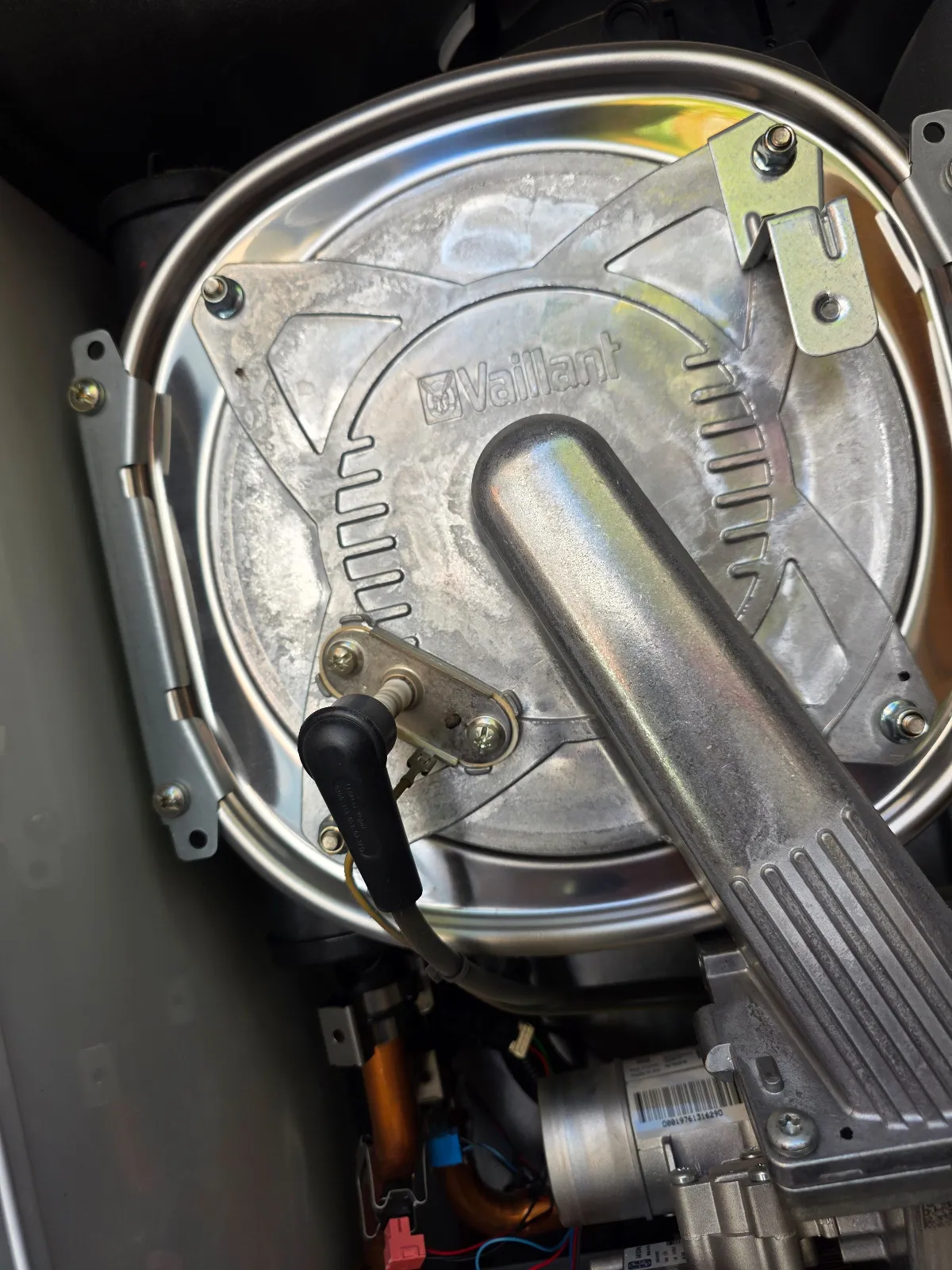

With the burner door nuts undone, we remove the burner assembly entirely. To ensure peak efficiency and safety moving forward, we:

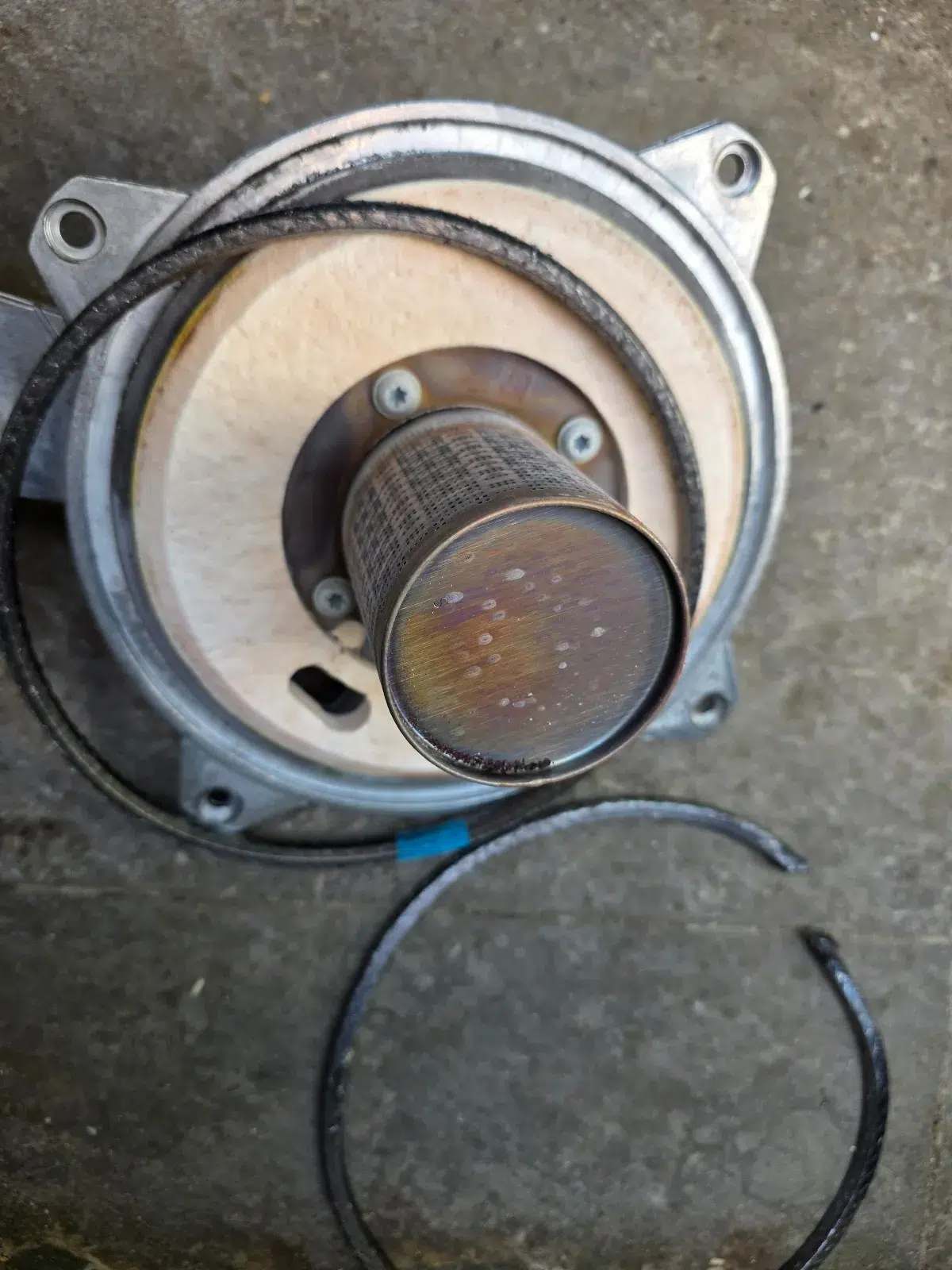

- Fit a brand-new G10 burner seal to guarantee a 100% airtight and gas-tight combustion seal upon reassembly.
- Replace the electrodes along with their gasket to ensure reliable ignition and accurate flame sensing.
Step 4: Heat Exchanger and Burner Maintenance

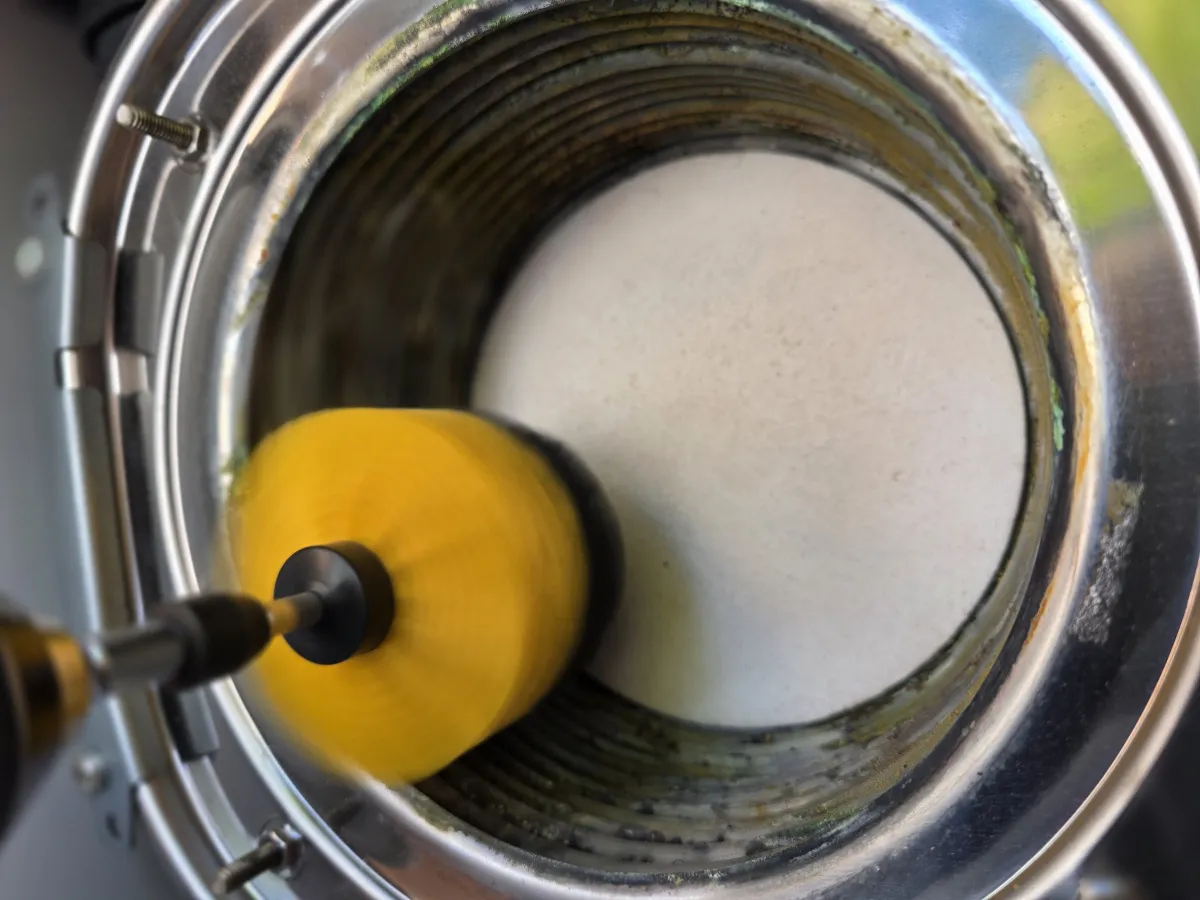

Using specialised non-metallic cleaning tools, we deep-clean the stainless-steel coils of the heat exchanger, flushing away stubborn combustion deposits. The burner mesh is also inspected and cleaned thoroughly to clear any particulate build-up.
Step 5: Reassembly and Local Gas Tightness Testing

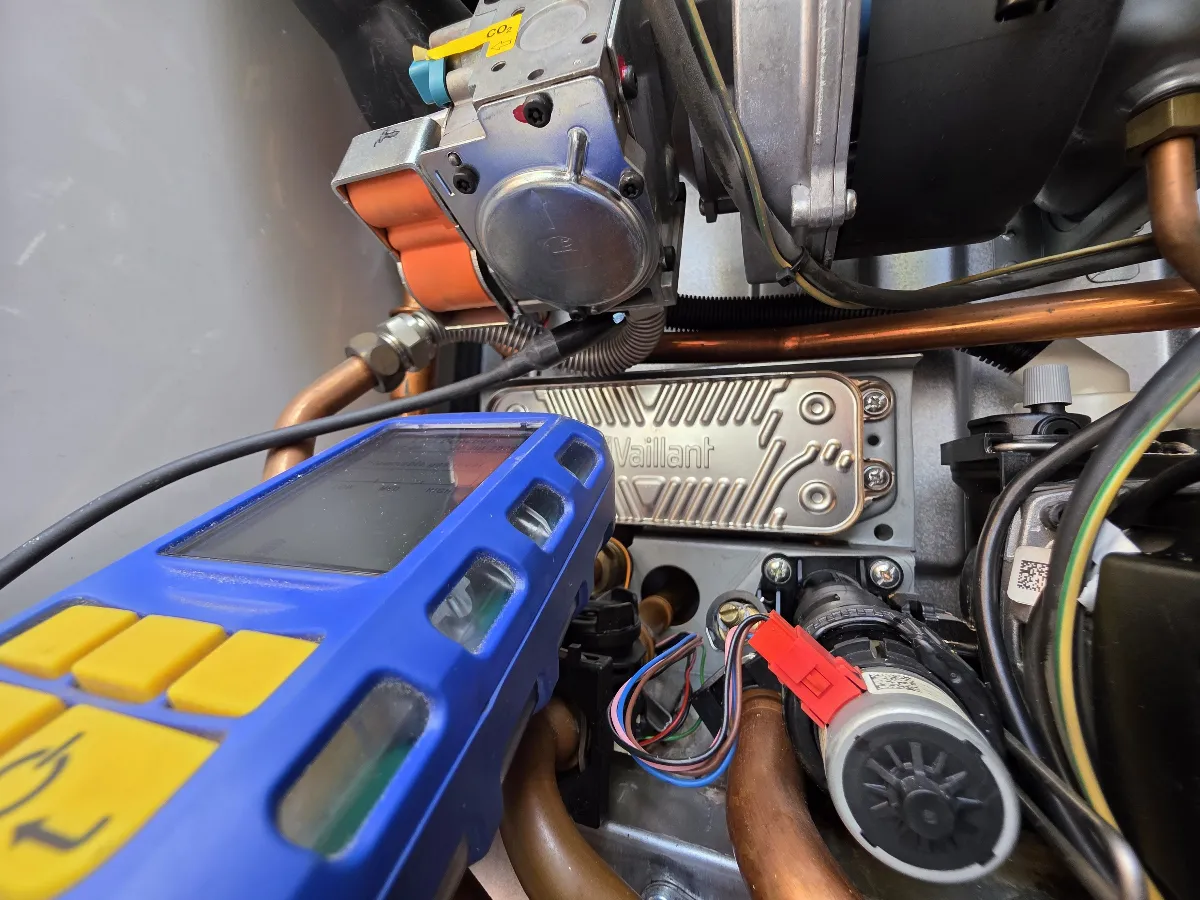

We meticulously reinstall the clean burner assembly with its new G10 seal, secure the fan, and reattach the gas connection. Following strict industry regulations, we perform a rigorous local gas tightness test on every single joint and union disturbed during the strip-down to verify absolute safety.
Step 6: Draining and Magnetic Filter Servicing

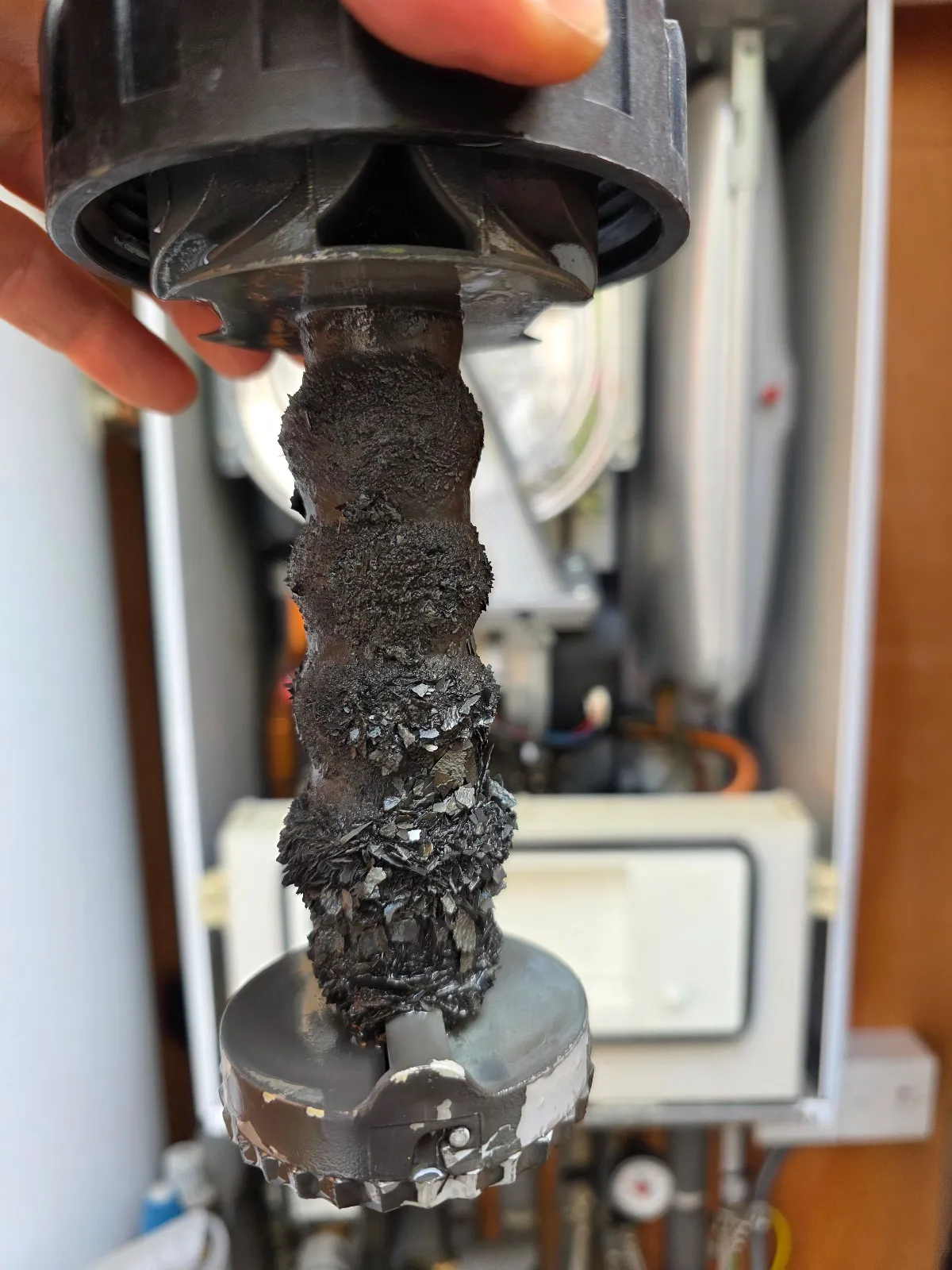

With the gas side buttoned up, we drop down to the hydraulic side and drain down the boiler. On this particular job, the inline magnetic filter was heavily packed with black iron oxide sludge—a clear sign that the system hadn’t seen a proper deep clean in some time. We thoroughly flushed and cleaned the filter to restore healthy circulation.
Step 7: Expansion Vessel and Pressure Relief Valve Checks
Next, we manually test the Pressure Relief Valve (PRV) to ensure the passing mechanism operates cleanly without any weeping. We also check and re-pressurise the internal expansion vessel to the correct bar rating to prevent future pressure drops and system lockouts.
Step 8: Component Replacement and Water Quality Assessment

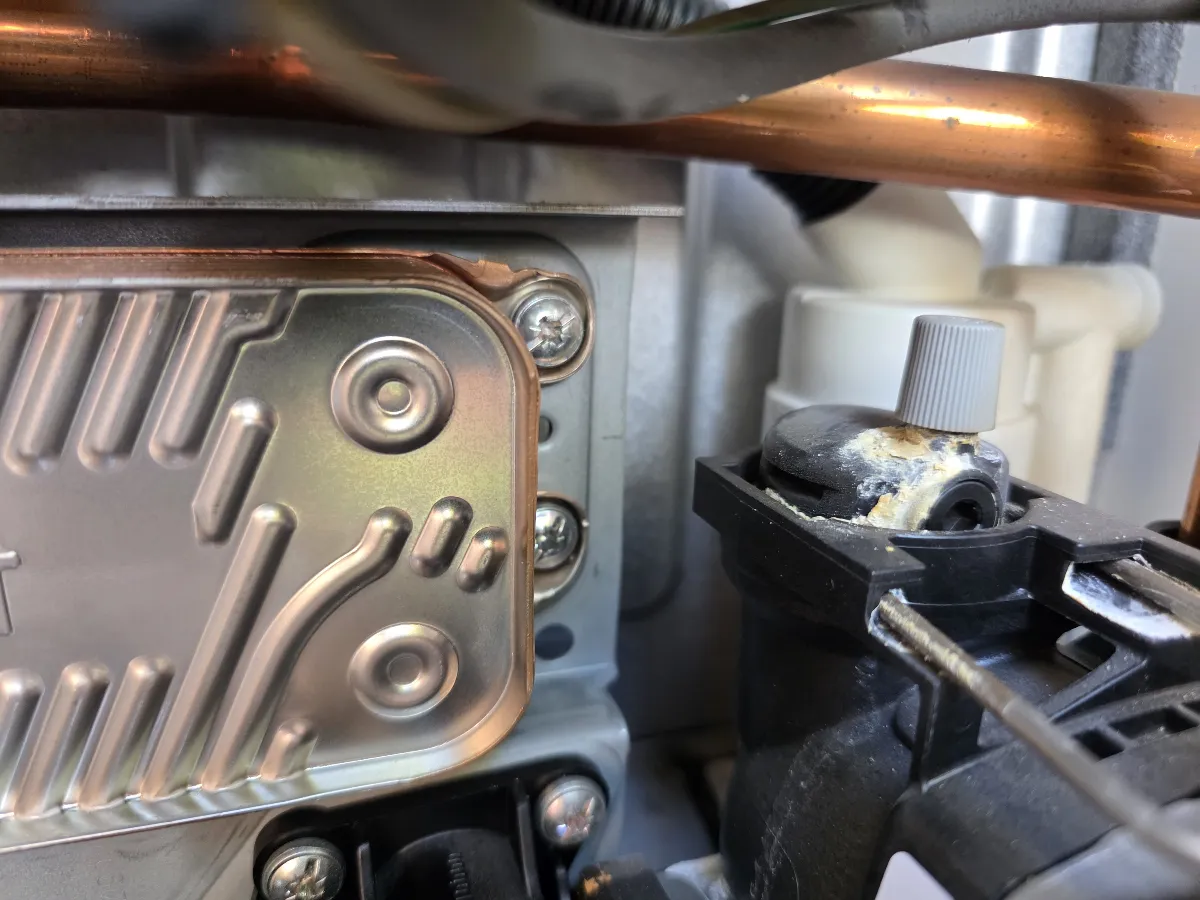

During our checks, we noticed the automatic air vent (AAV) was actively leaking. Because we carry common Vaillant spares directly on our vans, we swapped it out for a brand-new replacement on the spot. We also assessed the overall condition of the system water to ensure the inhibitor levels were up to scratch.
Step 9: Refilling, Venting, and Final Commissioning
We refilled the system to the correct operating pressure and meticulously bled the boiler and system air vents to remove all trapped air. Once everything was stable, we finally fired up the boiler to perform our final diagnostic and safety checks:

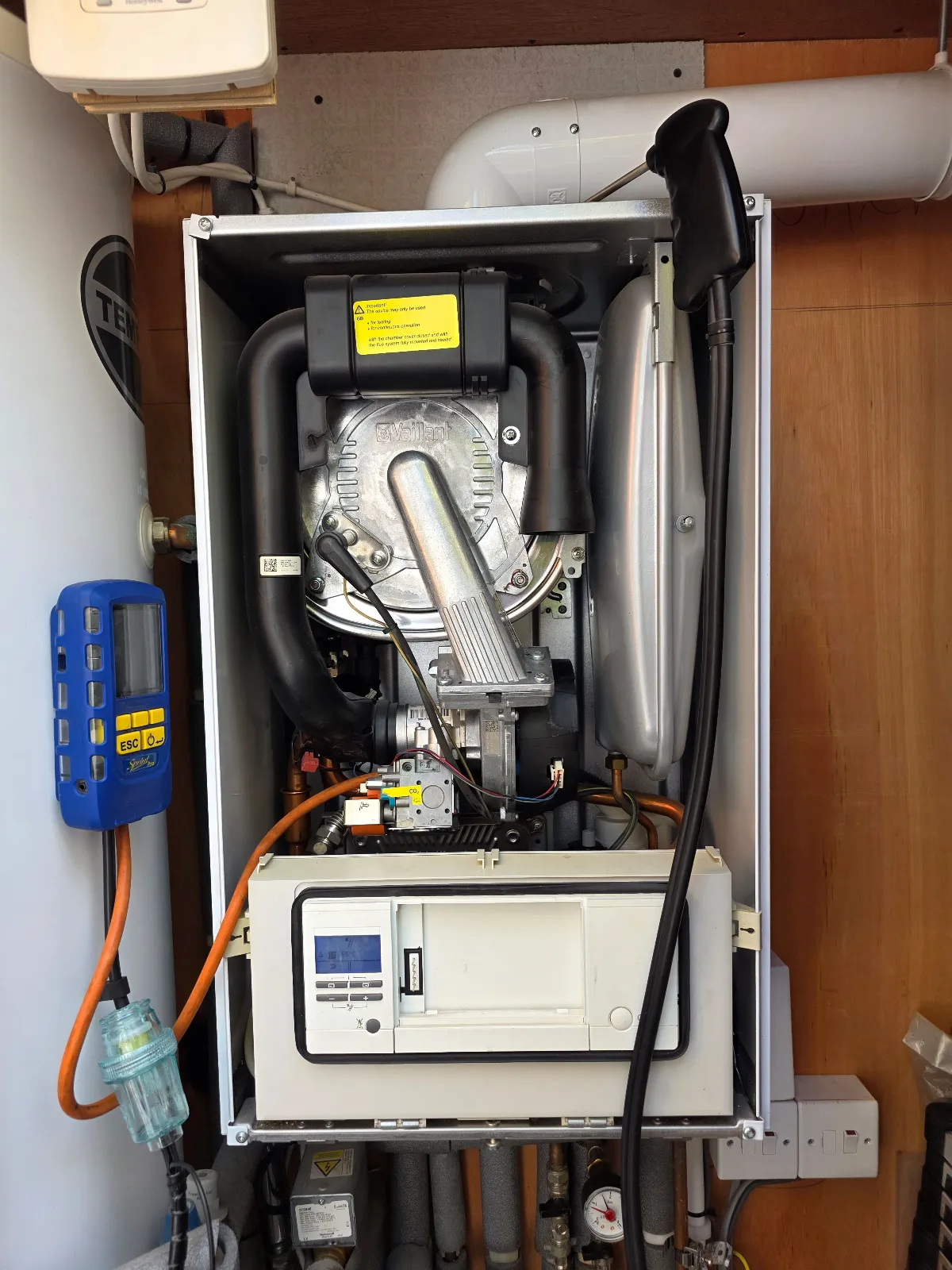

- Running the combustion gas rate and flue gas analysis checks.
- Testing the programmer and system controls.
- Completing all checks against BS 6798 and industry standard benchmarks.
How Often Should You Get a Full Strip-Down Boiler Service?
While a standard annual service is vital for checking basic safety and combustion parameters, a full strip-down service goes significantly deeper. For most modern high-efficiency boilers like the Vaillant EcoTEC, we recommend scheduling a comprehensive full strip-down service every 4 to 5 years. This targeted interval catches internal carbon scaling on the heat exchanger and heavy sludge accumulation early, drastically extending the lifespan of your appliance and preventing costly emergency breakdowns.
